Royall Above Ground Fuel Tanks

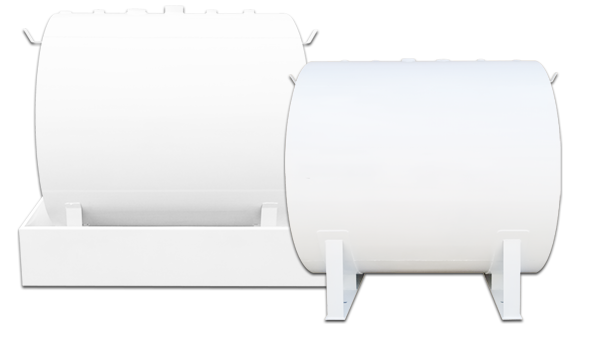

1000 Gallon Above Ground Fuel Storage Tank Example

1000 Gallon Above Ground Fuel Storage Tank

This huge 1000 gallon fuel storage tank is built with 7 gauge steel and a high quality powder coat finish for demanding fuel storage needs and commercial use. The powder coat fuel tank finish stands up to all types of adverse weather conditions, making this 1000 gallon fuel tank perfect for years of commercial usage.

Our 1000 gallon above ground fuel storage tanks are available as single wall or double wall construction, with or without containment facilities.

Every above ground fuel tank we produce is completely made to order, and shipped directly from our manufacturing facility. Custom powder coat fuel tank colors are available for all of our above ground fuel storage tanks.

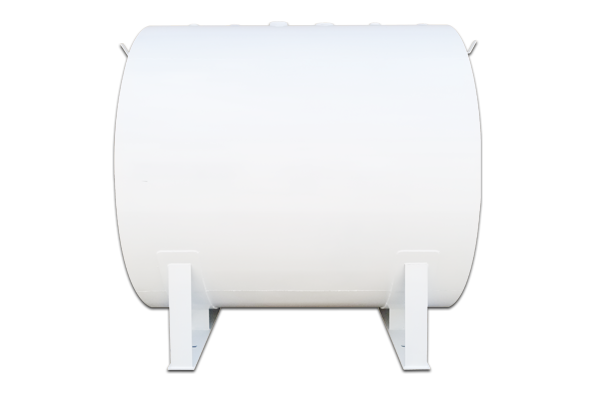

1000 Gallon Fuel Tank Without Containment


1000 Gallon Fuel Tank Without Containment

Available as Single Wall or Double Wall Construction

• 7 Gauge Steel Construction
• Tank Dimensions: 78" x 58" x 72" (HxWxL)
• Standard Tank Openings: 2", 2", 4", 2", 2"
• Powder coat Tank Finish

1000 Gallon Single Wall Fuel Tank
1000 Gallon Double Wall Fuel Tank


1000 Gallon Fuel Tank With Containment


1000 Gallon Fuel Tank With Containment

Available as Single Wall or Double Wall Construction

• 7 Gauge Steel Construction
• Tank Dimensions: 78" x 58" x 72" (HxWxL)
• Containment Dimensions: 16" x 83" x 72" (HxWxL)
• Standard Tank Openings: 2", 2", 4", 2", 2"
• Powder coat Tank Finish

1000 Gallon Single Wall Fuel Tank
1000 Gallon Double Wall Fuel Tank
